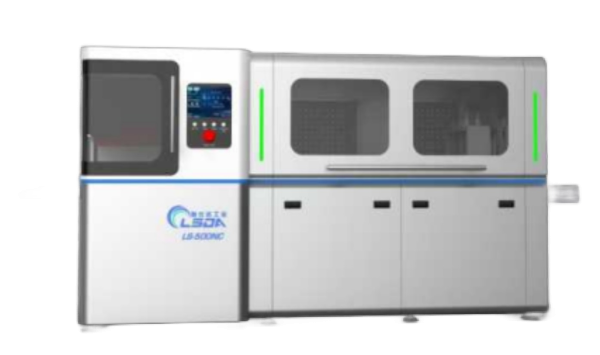

LSDA LS-500BNC Circular Saw Machine
Carbide-tipped circular saw machine with a 500 mm cutting width and an 11 kW main saw motor.
Description
Carbide-tipped circular saw machine with a 500 mm cutting width and an 11 kW main saw motor.
Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Cutting Width | 500mm |
| Maximum Cutting Height | 150mm |
| Max. Exposure Height of Saw Blade | 160mm |
| Single Delivery Journey | 1500mm |
| Main Saw Motor | 11 kW |
| Main Saw Diameter | 550mm |
| Main Saw Shaft Core Diameter | 38mm |
| Main Saw Speed | 3000 r/min |
| Chip Rate | ≥ 800 cm² |
| Blade Lifespan | ≥ 600 m² |
| Air Pressure | 0.6 MPa - 0.8 MPa |
| Workbench Height Above Ground | 840mm |
| Machine Dimensions (L x W x H) | 3373mm x 1990mm x 1643mm |
- Product Specifications
| Specification | LSDA LS-500BNC |
|---|---|
| Cutting width | 500 mm |
| Maximum cutting height | 150 mm |
| Maximum exposure of saw blade | 160 mm |
| Single delivery journey | 1500 mm |
| Main saw motor | 11 kW |
| Main saw diameter | 550 mm |
| Main saw shaft core diameter | 38 mm |
| Main saw speed | 3000 r/min |
| Chip rate | ≥ 800 cm² |
| Blade lifespan | ≥ 600 m² |
| Weight | ≥ 1800 kg |
| Air pressure | 0.6 MPa – 0.8 MPa |
| Workbench height above ground | 840 mm |
| Machine dimensions (L x W x H) | 3373 x 1990 x 1643 mm |
