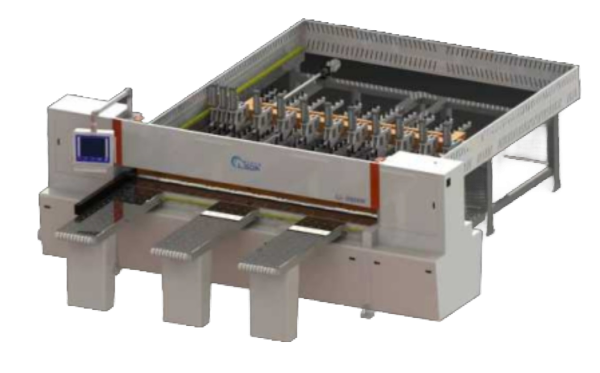

LSDA LS-4100BNC Circular Saw Machine
Carbide-tipped circular saw machine with a 4100 x 4100 mm cutting area and an 18.5 kW main saw motor.
Description
Carbide-tipped circular saw machine with a 4100 x 4100 mm cutting area and an 18.5 kW main saw motor.
Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Cutting Length | 4100mm |
| Cutting Width | 4100mm |
| Maximum Cutting Height | 160mm / 200mm |
| Max. Exposure Height of Saw Blade | 165mm / 205mm |
| Main Saw Motor | 18.5 kW |
| Main Saw Diameter | 550mm / 630mm |
| Main Saw Shaft Core Diameter | 38mm |
| Main Saw Speed | 3000 r/min |
| Walking Motor | 3 kW (variable frequency) |
| Forward Speed | Maximum 9 min |
| Reverse Speed | Maximum 17 min |
| Automatic Feeding Motor | AC 1 kW / 2 unit |
| Air Pressure | ≥ 5.0 kg/cm² |
| Workbench Height Above Ground | 1100mm |
| Machine Dimensions (L x W x H) | 7800mm x 6630mm x 2470mm |
| Voltage | 380V / 50Hz |
- Product Specifications
| Specification | LSDA LS-4100BNC |
|---|---|
| Cutting length | 4100 mm |
| Cutting width | 4100 mm |
| Maximum cutting height | 160 mm / 200 mm |
| Maximum exposure height of saw blade | 165 mm / 205 mm |
| Main saw motor | 18.5 kW |
| Main saw diameter | 550 mm / 630 mm |
| Main saw shaft core diameter | 38 mm |
| Main saw speed | 3000 r/min |
| Walking variable frequency motor | 3 kW |
| Forward speed | Maximum 9 m/min |
| Reverse speed | Maximum 17 m/min |
| Automatic feeding motor | AC 1 kW / 2 units |
| Air pressure | ≥ 5.0 kg/cm² |
| Workbench height above ground | 1100 mm |
| Machine dimensions (L x W x H) | 7800 x 6630 x 2470 mm |
| Voltage | 380 V / 50 Hz |
