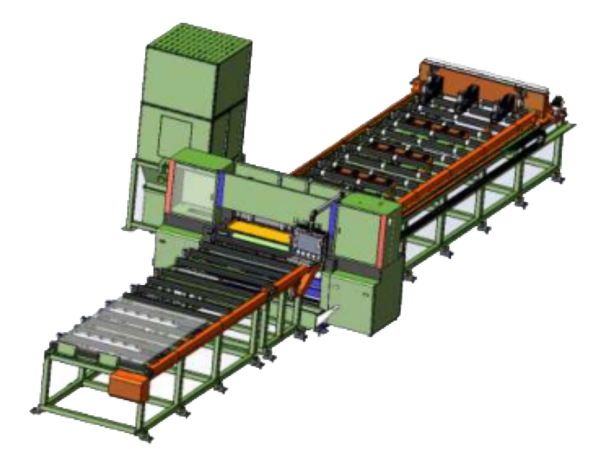

LSDA LS-1600CNC Custom-made Circular Saw Machine
Custom-made CNC circular saw machine with a 5000 x 1600 mm cutting area and a 15 kW main saw motor.
Description
Custom-made CNC circular saw machine with a 5000 x 1600 mm cutting area and a 15 kW main saw motor.
Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Cutting Length | 5000mm |
| Cutting Width | 1600mm |
| Maximum Cutting Height | 60mm |
| Max. Exposure Height of Saw Blade | 80mm |
| Main Saw Motor | 15 kW |
| Main Saw Diameter | 450mm |
| Main Saw Shaft Core Diameter | 38mm |
| Main Saw Speed | 3000 r/min |
| Walking Motor | 3.0 kW (variable frequency) |
| Forward Speed | Maximum 12 min |
| Reverse Speed | Maximum 12 min |
| Automatic Feeding Motor | AC 1.0 kW (2 unit) |
| Air Pressure | 0.4 MPa - 0.8 MPa |
| Roller Surface Height | 1250mm |
| Host Working Height | 1100mm |
| Dust-removing Equipment | The power of 11 kW is filtered by a filter cartridge, and the waste is discharged from the trolley. |
| Voltage | 380V / 50Hz |
- Product Specifications
| Specification | LSDA LS-1600CNC |
|---|---|
| Cutting length | 5000 mm |
| Cutting width | 1600 mm |
| Maximum cutting height | 60 mm |
| Maximum exposure height of saw blade | 80 mm |
| Main saw motor | 15 kW |
| Main saw diameter | 450 mm |
| Main saw shaft core diameter | 38 mm |
| Main saw speed | 3000 r/min |
| Walking variable frequency motor | 3.0 kW |
| Forward speed | Maximum 12 m/min |
| Reverse speed | Maximum 12 m/min |
| Automatic feeding motor | AC 1.0 kW (2 units) |
| Air pressure | 0.4 MPa – 0.8 MPa |
| Roller surface height | 1250 mm |
| Host working height | 1100 mm |
| Dust-removing equipment | 11 kW power, filtered by a filter cartridge, with waste discharged from the trolley |
| Voltage | 380 V / 50 Hz |
