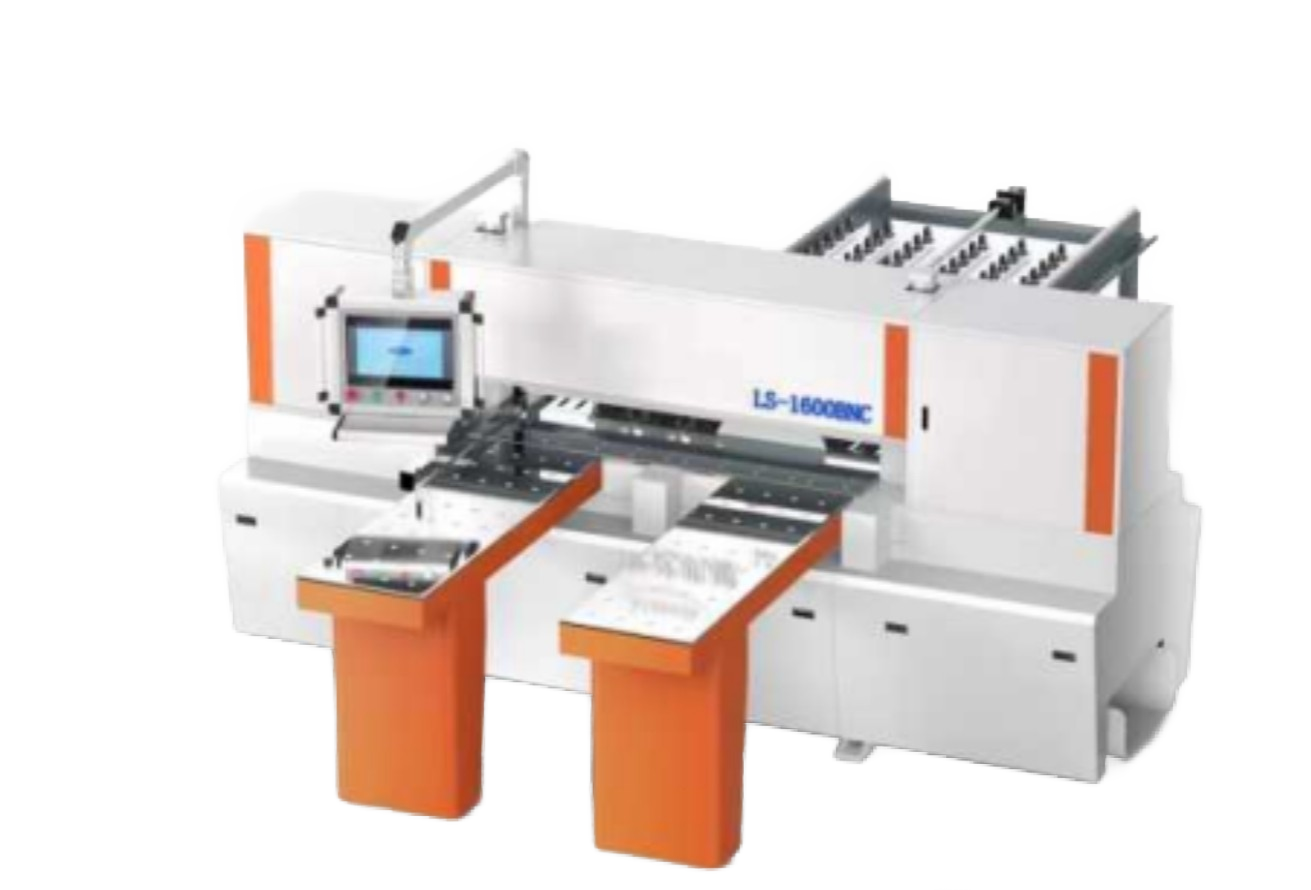

LSDA LS-1600BNC Circular Saw Machine
Carbide-tipped circular saw machine with a 3100 x 1600 mm cutting area and a 15 kW main saw motor.
Description
Carbide-tipped circular saw machine with a 3100 x 1600 mm cutting area and a 15 kW main saw motor.
Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Cutting Length | 3100mm |
| Cutting Width | 1600mm |
| Maximum Cutting Height | 160mm |
| Raise the Pressure Manual | 175mm |
| Main Saw Motor | 15 kW |
| Main Saw Diameter | 550mm |
| Main Saw Shaft Core Diameter | 38mm |
| Main Saw Speed | 3000 r/min |
| Walking Motor | 1.5 kW (variable frequency) |
| Forward Speed | Maximum 9 min |
| Reverse Speed | Maximum 17 min |
| Automatic Feeding Motor | AC 0.75 kW |
| Air Pressure | 0.4 MPa - 0.8 MPa |
| Workbench Height Above Ground | 1100mm |
| Machine Dimensions (L x W x H) | 6500mm x 4300mm x 2000mm |
| Voltage | 380V / 50Hz |
- Product Specifications
| Specification | LSDA LS-1600BNC |
|---|---|
| Cutting length | 3100 mm |
| Cutting width | 1600 mm |
| Maximum cutting height | 160 mm |
| Raise the pressure (manual) | 175 mm |
| Main saw motor | 15 kW |
| Main saw diameter | 550 mm |
| Main saw shaft core diameter | 38 mm |
| Main saw speed | 3000 r/min |
| Walking variable frequency motor | 1.5 kW |
| Forward speed | Maximum 9 m/min |
| Reverse speed | Maximum 17 m/min |
| Automatic feeding motor | AC 0.75 kW |
| Air pressure | 0.4 MPa – 0.8 MPa |
| Workbench height above ground | 1100 mm |
| Machine dimensions (L x W x H) | 6500 x 4500 x 2000 mm |
| Voltage | 380 V / 50 Hz |
