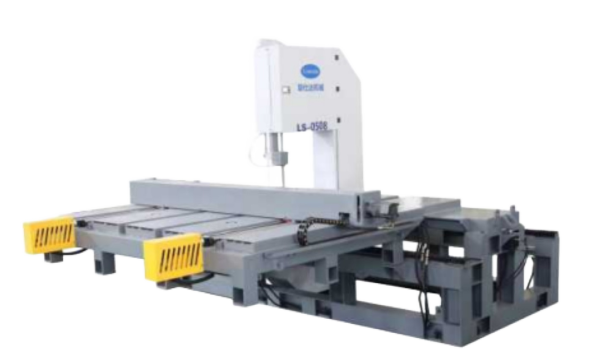

LSDA LS-0508BNC Band Sawing Machine
Band sawing machine for a height of 500 mm and depth of 800 mm, with a 22 kW variable frequency saw belt motor.
Description
Band sawing machine for a height of 500 mm and depth of 800 mm, with a 22 kW variable frequency saw belt motor.
Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Sawing Ability (mm) | Height 500, Depth 800, Sawing stroke 3000/4000 |
| Sawband Flipping | 0° |
| Saw Wheel Diameter (mm) | 860 x 2 wheels |
| Saw Wheel Material | Hard anodized treatment of hard aluminium alloy 7075T651 |
| Saw Band Material | Hard alloy saw belt (Taijiu TCB non toothed) |
| Sawband Specifications (mm) | Approximately 7660 in length x 41 in width x 1.6 in thickness x 2/3 teeth (length to be determined by final design) |
| Sawing Speed (m/min) | 800-2200 (variable frequency speed regulation) |
| Saw Belt Motor | Variable frequency motor 22 kW (6P) |
| Main Transmission System | Aluminium alloy pulley + main motor direct insertion (dynamic balancing treatment) |
| Tension Method of Saw Belt | Independent hydraulic automatic tensioning (with belt breakage protection function) |
| Cutting Method | Saw bow cutting |
| Feed Guide Rail | 2 linear sliding rails |
| Feed Rate (m/min) | 0-3000 (servo motor + ball screw + linear slide rail) |
| Cut Thickness (mm) | ≤ 2 |
| Sawing Auxiliary Machine | Cyclone dust collector (optional configuration) |
| Blade Lifespan | ≥ 200 |
| Safety Production | The belt breakage is detected by tension pressure sensing. If the pressure is abnormal, the pneumatic hydraulic brake device will act, and the saw belt wheel will stop rotating. |
- Product Specifications
| Specification | LSDA LS-0508BNC |
|---|---|
| Sawing ability | Height 500, depth 800, sawing stroke 3000/4000 mm |
| Sawband flipping | 0° |
| Saw wheel diameter | 860 mm x 2 wheels |
| Saw wheel material | Hard anodized hard aluminium alloy 7075T651 |
| Sawband material | Hard alloy saw belt (Taijiu TCB non-toothed) |
| Sawband specifications | Approx. 7660 mm length x 41 mm width x 1.6 mm thickness, 2/3 teeth (length to be determined by final design) |
| Sawing speed | 800–2200 m/min (variable frequency regulation) |
| Saw belt motor | Variable frequency motor 22 kW (6P) |
| Main transmission system | Aluminium alloy pulley + main motor direct insertion (dynamic balancing treatment) |
| Tension method of saw belt | Independent hydraulic automatic tensioning (with belt breakage protection function) |
| Cutting method | Saw bow cutting |
| Feed guide rail | 2 linear sliding rails |
| Feed rate | 0–3000 m/min (servo motor + ball screw + linear slide rail) |
| Cut thickness | ≤ 2 mm |
| Sawing auxiliary machine | Cyclone dust collector (optional configuration) |
| Blade lifespan | ≥ 200 |
| Safety protection | Belt breakage is detected by tension pressure sensing. If the pressure is abnormal, the pneumatic hydraulic brake device will act and the saw belt wheel will stop rotating. |
