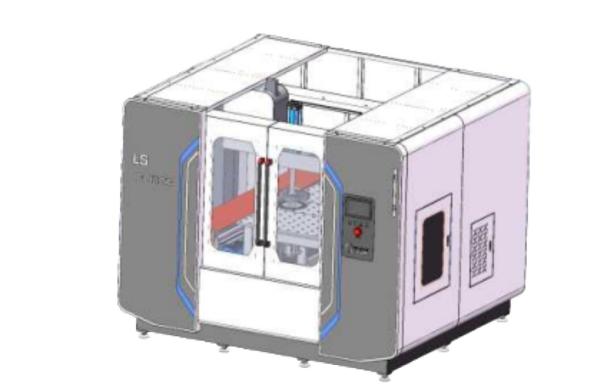

LSDA LS-03-06BNC Custom-made Band Sawing Machine
Custom-made band sawing machine with 300-1000 mm maximum sawing ability and an 11 kW variable frequency saw belt motor.
Description
Custom-made band sawing machine with 300-1000 mm maximum sawing ability and an 11 kW variable frequency saw belt motor.
Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Sawing Ability (mm) | 300-1000 (max) |
| Sawband Flipping Distance | 300mm |
| Sawband Flipping | 0° |
| Saw Wheel Diameter (mm) | 450 x 2 wheels |
| Saw Wheel Material | Hard anodized treatment of hard aluminium alloy 7075T651 |
| Saw Band Material | Hard alloy saw belt (Taijiu TCB non toothed) |
| Sawband Specifications (mm) | Approximately 3830 in length x 19 in width (length to be determined by final design) |
| Sawing Speed (m/min) | 500-2000 (variable frequency speed regulation) |
| Saw Belt Motor | Variable frequency motor 11 kW (6P) |
| Main Transmission System | Aluminium alloy pulley + main motor direct insertion (dynamic balancing treatment) |
| Tension Method of Saw Belt | Hydraulic tensioning (with belt breakage protection function) |
| Cutting Method | Platform advancement |
| Feed Guide Rail | 4 linear sliding rails |
| Feed Rate (m/min) | 0-1000 (servo motor + ball screw + linear slide rail) |
| Feeding Method | Servo motor + precision reducer + ball screw |
| Cut Thickness (mm) | ≤ 1 |
| Sawing Auxiliary Machine | Cyclone dust collector (optional configuration) |
- Product Specifications
| Specification | LSDA LS-03-06BNC |
|---|---|
| Sawing ability | 300–1000 mm (max) |
| Sawband flipping | 300 mm |
| Sawband flipping angle | 0° |
| Saw wheel diameter | 450 mm x 2 wheels |
| Saw wheel material | Hard anodized hard aluminium alloy 7075T651 |
| Sawband material | Hard alloy saw belt (Taijiu TCB non-toothed) |
| Sawband specifications | Approx. 3830 mm length x 19 mm width (length to be determined by final design) |
| Sawing speed | 500–2000 m/min (variable frequency regulation) |
| Saw belt motor | Variable frequency motor 11 kW (6P) |
| Main transmission system | Aluminium alloy pulley + main motor direct insertion (dynamic balancing treatment) |
| Tension method of saw belt | Hydraulic tensioning (with belt breakage protection function) |
| Cutting method | Platform advancement |
| Feed guide rail | 4 linear sliding rails |
| Feed rate | 0–1000 m/min (servo motor + ball screw + linear slide rail) |
| Feeding method | Servo motor + precision reducer + ball screw |
| Cut thickness | ≤ 1 mm |
| Sawing auxiliary machine | Cyclone dust collector (optional configuration) |
