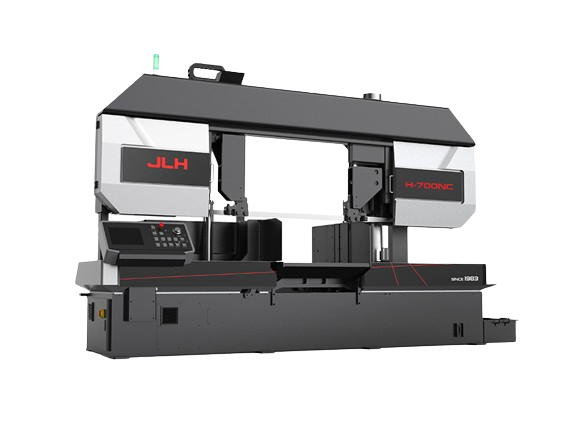

JLH H-700NC Sawing Machine
Description
The JLH H-700NC is a band sawing machine from the JLH H-NC Series. Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Series | JLH H-NC Series |
| Models | H-700NC |
- Product Specifications
| Specification | JLH H-700NC |
|---|---|
| Capacity – Round (mm) | 40 – 700 |
| Capacity – Rectangular (mm) | 40 x 40 – 800 x 700 |
| Blade Size (mm) | 8100 x 54 x 1.6 |
| Blade Speed (m/min) | 20 – 80 |
| Blade Drive Motor (kW) | 11 |
| Hydraulic Pump Motor (kW) | 1.5 |
| Coolant Pump Motor (kW) | 0.135 |
| Hydraulic Oil (ℓ) | 70 |
| Cutting Liquid (ℓ) | 140 |
| Machine Size (L x W x H) (mm) | 3937 x 2235 x 2540 |
| Machine Weight (kg) | ≈ 6000 |
| Direct-Drive Gearbox | Gearbox |
