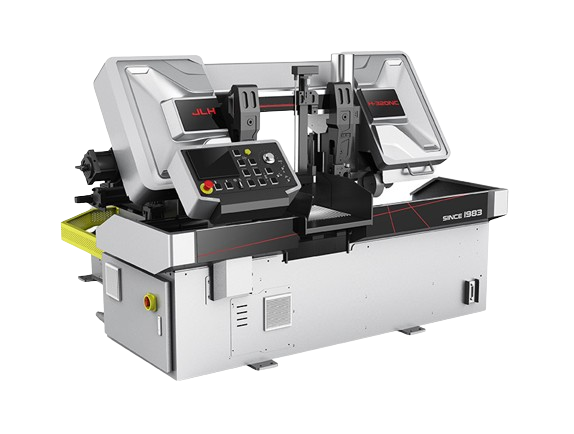

JLH H-320NC Sawing Machine
Description
The JLH H-320NC is a band sawing machine from the JLH H-NC Series. Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Series | JLH H-NC Series |
| Models | H-320NC |
- Product Specifications
| Specification | JLH H-320NC |
|---|---|
| Capacity – Round (mm) | 40 – 320 |
| Capacity – Rectangular (mm) | 40 x 40 – 320 x 320 |
| Blade Size (mm) | 4115 x 34 x 1.1 |
| Blade Speed (m/min) | 10 – 80 |
| Blade Drive Motor (kW) | 5 |
| Hydraulic Pump Motor (kW) | 1.1 |
| Coolant Pump Motor (kW) | 0.09 |
| Hydraulic Oil (ℓ) | 60 |
| Cutting Liquid (ℓ) | 90 |
| Machine Size (L x W x H) (mm) | 2250 x 2300 x 1550 |
| Machine Weight (kg) | ≈ 1700 |
| Direct-Drive Gearbox | Gearbox |
