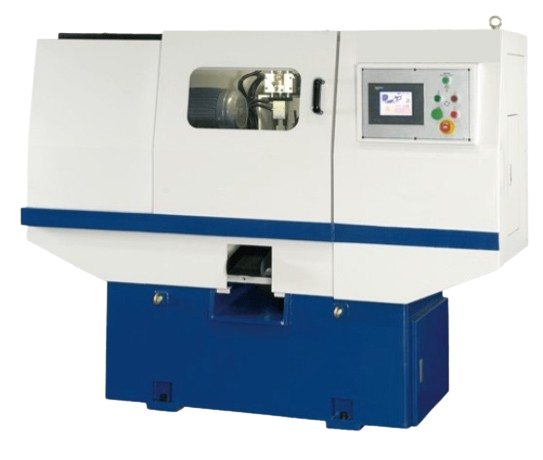

Double Head Chamfering Machine
Double head chamfering machine.
Description
Double head chamfering machine.
Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Type | Double head chamfering machine |
| Spindle Motor (kW (hp)) | 3 HP (2.2kW) x 2 ps (std.); 0.4kW (1/2hp) ~ 2.2kW (3hp) (opt.) |
| Spindle Speed (rpm) | 800~2500 (std.); 300~1500 (opt.) |
| Frequency Converter (kW (hp)) | 5.5kW (7.5hp) (std.); 1.5kW (2hp) ~ 5.5kW (7.5hp) (opt.) |
| Server-Motor Feeding (kW) | 1kW (opt.) |
| Air Pressure (mpa) | 6~8kg/cm², 120ml/min 0.6~0.8mpa |
| Applicable Materials | Various pipes including steel, iron, stainless steel, aluminum, bronze |
| Pipe and Bar O.D. / Inner Angle and End Face (mm) | O.D.Ø12~Ø52 / t0.8~5; O.D.Ø8~Ø12 / t0.8~5 (opt.) |
| Workpiece Length (mm) | L20~120mm; L12~20mm (opt.) |
| Cutterhead (mm) | A type Ø12~Ø52, (MAXØ60) (std.); B type Ø5~Ø12 (opt.) |
| Machine Dimensions (L x W x H) (mm) | 1900 x 1300 x 1600 |
| Packing Dimensions (L x W x H) (mm) | 2000 x 1400 x 1700 |
| N.W. (kg) | 1050 |
| G.W. (kg) | 1220 |
