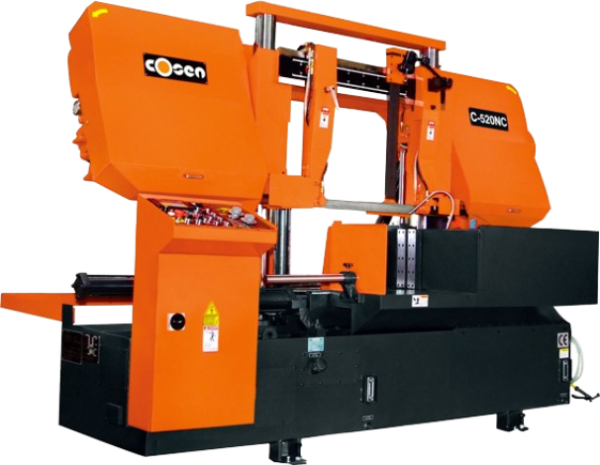

Cosen C-520NC Band Sawing Machine
Description
The Cosen C-520NC is a band sawing machine for cutting steel. Contact UMA Tools for pricing, availability and delivery.
| Product Details | |
|---|---|
| Series | Cosen Steel Sawing Machines |
| Models | C-520NC |
- Product Specifications
| Specification | Cosen C-520NC |
|---|---|
| Capacity – Round (mm) | 520 |
| Capacity – Square (mm) | 520 |
| Capacity – Rectangular (mm) | 560×520 |
| Bundle Width (mm) | 250-470 |
| Bundle Height (mm) | 150-315 |
| Blade Speed (m/min) | 20-100 |
| Blade Size (mm) | 54×1.6×6040 |
| Blade Tension | Hydraulic |
| Drive Motor (HP) | 7.5 |
| Hydraulic Motor (HP) | 2 |
| Coolant Motor (HP) | 1/4 |
| Single Indexing (mm) | 600 |
| Multiple Indexing | 6500 mm |
| Workbed Height (mm) | 765 |
| Weight (kg) | 3924 |
| Floor Space (mm) | 3160x2210x2157 |
| Hydraulic Oil (L) | 40 |
| Cutting Liquid (L) | 85 |
| Vise | Hydraulic Full Stroke Cylinder |
